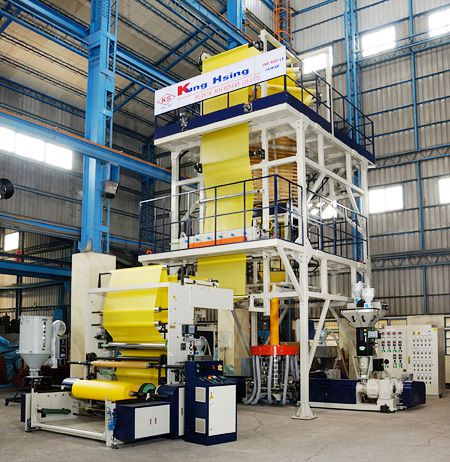

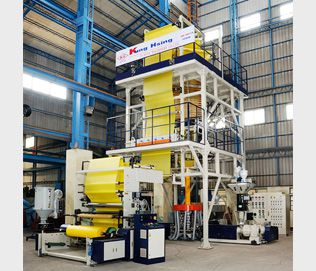

HDPE THREE LAYER CO-EXTRUSION

HDPE THREE LAYER CO-EXTRUSION

● Material To Be Used : A(HDPE)+B(HDPE/CaCO3/Recycled Material)+C(HDPE)
● Gain-In-Weight Gravimetric Batch Blender
● IBC
● Oscillating Take Up Unit
● Two Color Flexographic In-Line Printing Machine

Layer ratio: A. 15%, B. 70%, C. 15%
CaCo3 up to 80% in B layer
Capacity: 300kg/hr.
HDPE THREE LAYER CO-EXTRUSION BACK
  • Specification
  • Video
  • Photograph
  • Device
MODEL   KS-CFLL55+65T
FEATURE MATERIAL TO BE USED   LDPE LLPDPE HDPE EVA PP
MAX. FILM WIDTH   1500 mm
THICKNESS OF FILM   0.02~0.25 m/m
MAX. EXTRUSION OUTPUT   350 kg/hr
EXTRUDER SCREW DIA.   55 mm × 2
65 mm × 1
SCREW L/D   30 : 1
SCREW / CYLINDER MATERIAL   SACM 645 STEEL WITH HARD WITH NITROGEN TREATMENT, HARDNESS 75 OR OVER
CYLINDER COOLING   ½ HP × 9
DRIVING MOTOR   40 HP × 2
50 HP × 1
HEATER CAPACITY   45 kw
DIES (mm)   300/350 ø
TEMPERATURE CONTROL   19 ZONES
COOLING EQUIP   10 HP
TAKE-UP UNIT TYPE   FIXED TYPE / OSCILLATING TYPE
PINCH ROLLER (mm)   165 ø × 1600L
TAKE-UP MOTOR   2 HP
TAKE-UP SPEED (m/min)   6 ~ 60
SUB-PINCH ROLLER (mm)   140 ø × 1600L
GUIDE MOTOR   50 kg/cm
WINDING UNIT FWC TYPE   ONE STATION SURFACE WINDER WITH AUTOMATIC BOBIN CHANGE
EFFECTIVE WIDTH   1500 mm
DIA. OF FILM WOUND-UP ROLL   800 mm
WINDER MOTOR   2 HP
DIMENSION (L×W×H) (M)   8.0×5.3×9.0
OPTIONAL DEVICE
Gravimetric Dosing Unit Oscillating Take Up Unit
IBC (Internal Bubble Cooing Computer Control System) Line Speed Synchronized with Computer Control
Thickness Measurement Two Stations Surface Winder
Thickness Controller Chiller
Automatic Hopper Loader Heat Slitting Device
Film Surface Treater EPC (Edge Position Control)
Pressure Gauge Electronic Tension Control
Rotary Die Crane for Die and Air Shaft
Automatic Gauge Control with
Automatic Cooling Ring
PIB Pump System (For LDPE/LLDPE)
*Specifications are subject to change without notice for improvement.
MODEL:
KS-CFLL55+65T Video Video

KS-CFLL55+75T

Roller width: 1400L with ibcsystem, back to back winder, TSM batch blenderand oscillating take-up unit.
Material to be used: A(PE) + B(PE/CaCO3/Recycle PE) + C(PE)
KS-CFLL55+75T

KS-CFLL55+65T HDPE

Three Layer Special for HDPE
Material to be Used: A(PE) + B(PE/CACO3/Recycle PE) + C(PE)
KS-CFLL55+65T HDPE

KS-CFLL55+80T

Layer ratio: A. 15%, B. 70%, C. 15%
CaCo3 up to 80% in B layer
Capacity: 300kg/hr.
KS-CFLL55+80T

KS-CFLL55+80T

With Two Color Flexographic In-Line Printing Machine

KS-CFLL55+85T

Roller width: 1300mm with oscillating take up unit, Doteco gravimetric dosing unit, IBC, ETC andcpc
KS-CFLL55+85T

KS-CFLL55+85T
