HDPE 200 M/min FEH TYPE SUPER HIGH SPEED BLOWN FILM LINE

HDPE 200 M/min FEH TYPE SUPER HIGH SPEED BLOWN FILM LINE

HDPE 200 M/min FEH TYPE SUPER HIGH SPEED BLOWN FILM LINE 　 BACK
  • Specification
  • Video
  • Photograph
  • Device
MODEL   KS-FEH 50 KS-FEH 55 KS-FEH 65 KS-FEH 80
FEATURE MATERIAL TO BE USED   HDPE + (LLDPE + CACO3)
MAX. FILM WIDTH   700 mm   900 mm   1200 mm   1500 mm
THICKNESS OF FILM   0.007~0.05 mm
MAX. EXTRUSION OUTPUT   130 kg/hr   150 kg/hr   185 kg/hr   280 kg/hr
EXTRUDER SCREW DIA.   50 mm   55 mm   65 mm   80 mm
SCREW L/D & MATERIAL   30 : 1
  SACM-645 STEEL WITH HARD WITH NITROGEN TREATMENT
CYLINDER COOLING BLOWER   ½HP × 2   ½HP × 2   ½ HP × 3   ½ HP × 4
DRIVING MOTOR   40 HP   50 HP   75 HP   125 HP
HEATER CAPACITY   22 kw   25 kw   30 kw   40 kw
DIES   ø 100   ø 120   ø 150   ø 200
TEMPERATURE CONTROL   6 ZONES   6 ZONES   7 ZONES   6 ZONES
    2 ZONES WITH ROTARY DIE BASE
COOLING EQUIP   5 HP   7½ HP   7½ HP   10 HP
TAKE-UP UNIT TYPE   HEIGHT ADJUSTABLE / FIXED TYPE
PINCH ROLLER (m/m)   ø 165 ×  750 L   ø 165 ×  1000 L   ø185 ×  1300 L   ø185 ×  1600 L
TAKE-UP SERVO MOTOR   1KW   2KW   2KW   3KW
TAKE-UP SPEED   50 - 200 M/MIN
SUB-PINCH ROLLER (mm)   ø140 × 750 L   ø 140 × 1000 L   ø 140× 1300 L   165 ø × 1600 L
WINDING UNIT FWH TYPE   ONE STATION AUTOMATIC SURFACE TYPE WINDER
EFFECTIVE WIDTH & DIA. OF FILM ROLL   700 MML   900 MML   1200 MML   1500 MML
DIA. 800MM DIA. 800MM DIA. 800MM DIA. 800MM
WINDER SERVO MOROR   1KW   2KW   2KW   3KW
WINDER SPEED   50 - 200 M/MIN
DIMENSION (L×W×H) (M)   5.5×2.5×5.2   6.5×3.0×7.0   6.8×3.0×7.5   8.0×5.0×8.5
OPTIONAL DEVICE
Gravimetric Dosing Unit Oscillating Take Up Unit
IBC (Internal Bubble Cooing Computer Control System) Line Speed Synchronized with Computer Control
Thickness Measurement Two Stations Surface Winder
Thickness Controller Chiller
Automatic Hopper Loader Heat Slitting Device
Film Surface Treater EPC (Edge Position Control)
Pressure Gauge Electronic Tension Control
Rotary Die Crane for Die and Air Shaft
Automatic Gauge Control with
Automatic Cooling Ring 		PIB Pump System (For LDPE/LLDPE)
*Specifications are subject to change without notice for improvement.
MODEL:
Video TaipeiPlas 2014

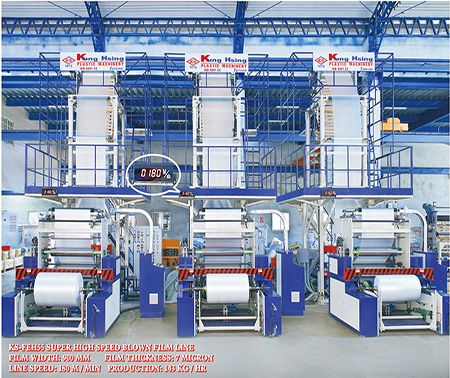

KS-FEH55
SUPER HIGH SPEED BLOWN FILM LINE


KS-FEH65
SUPER HIGH SPEED BLOWN FILM LINE

KS-FEH45

KS-FEH55

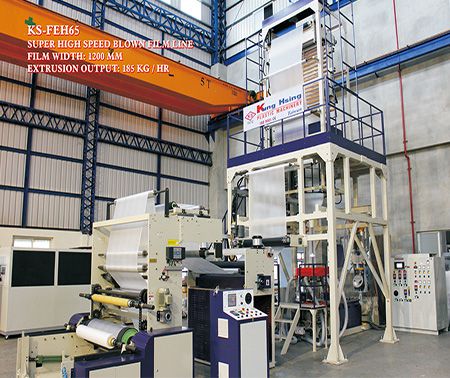

KS-FEH65, no. 4201

KS-FEH65, no. 4201
