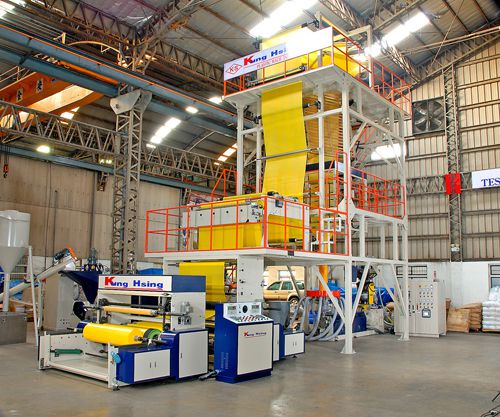

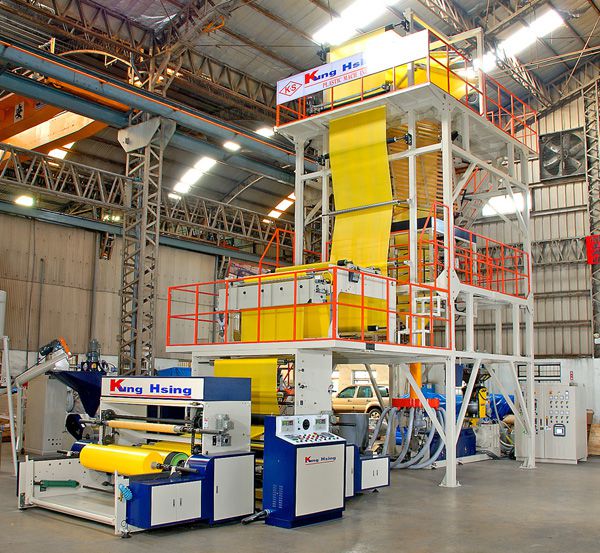

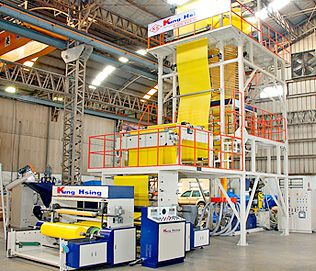

HDPE Single Head Type Blown Film Extrusion Machine For Jumbo Bag

MODEL

KS-FE45

KS-FE50

KS-FE55

KSFE65

FEATURE

MATERIAL TO BE USED

HDPE

MAX.FILM WIDTH

600mm

700mm

850mm

1100mm

THICKNESS OF FILM

0.008~0.08 m/m

MAX.EXTRUSION OUTPUT

75 kg/hr

90 kg/hr

135 kg/hr

165 kg/hr

EXTRUDER

SCREW DIA.

45 mm

50 mm

55 mm

65 mm

SCREW L/D

30:1

SCREW/CYLINDER MATERIAL

SACM-645 STEEL WITH HARD WITH NITROGEN TREATMENT

CYLINDER COOLING

1/2 HPx1

1/4,1/2 HPx1

1/2 HPx3

DRIVING MOTOR

30 HP

40 HP

50 HP

75 HP

HEATER CAPACITY

14 kw

19 kw

20 kw

27 kw

DIES (mm)

60~75Ø

70~100Ø

90~120Ø

120~150Ø

TEMPERATURE CONTROL

6 ZONES

7 ZONES

COOLING EQUIP

5 HP

7 1/2 HP

TAKE-UP UNIT

TYPE

HEIGHT ADJUSTABLE

PINCH ROLLER (mm)

165Øx650L

165Øx750L

165Øx900L

165Øx1200L

TAKE-UP MOTOR

1/2 HP

1 HP

2 HP

TAKE-UP SPEED (m/min)

12~120

SUB-PINCH ROLLER (mm)

100Øx650L

100Øx750L

100Øx900L

100Øx1200L

GUIDE MOTOR

15 kg/cm

20 kg/cm

30 kg/cm

WINDING UNIT

FW TYPE

ONE STATION AUTOMATIC SURFACE TYPE WINDER x 1

EFFECTIVE WIDTH

600 mm

700 mm

850 mm

1100 mm

DIA. OF FILM WOUND-UP ROLL

1000 mm

WINDER MOTOR

1 HP

2 HP

DIMENSION (LxWxH)(M)

4.9x2.3x4.3

5x2.4X4.8

6x2.5x5.7

6.3x2.8x7

OPTIONAL DEVICE

Gravimetric Dosing Unit	Oscillating Take Up Unit
IBC (Internal Bubble Cooing Computer Control System)	Line Speed Synchronized with Computer Control
Thickness Measurement	Two Stations Surface Winder
Thickness Controller	Chiller
Automatic Hopper Loader	Heat Slitting Device
Film Surface Treater	EPC (Edge Position Control)
Pressure Gauge	Electronic Tension Control
Rotary Die	Crane for Die and Air Shaft
Automatic Gauge Control with Automatic Cooling Ring	PIB Pump System (For LDPE/LLDPE)

*Specifications are subject to change without notice for improvement.
