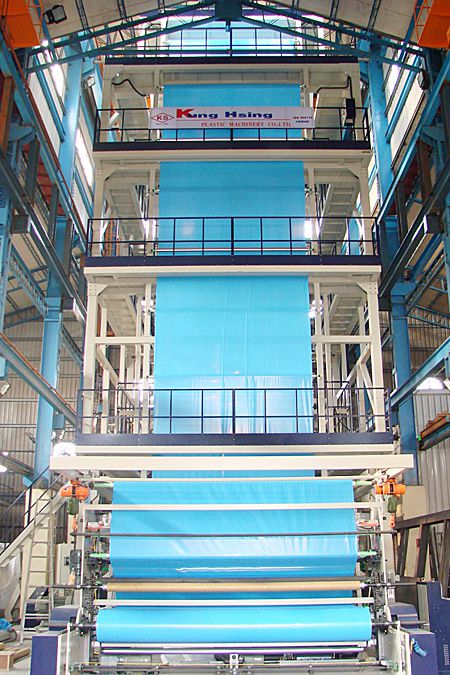

THREE-LAYER CO-EXTRUSION FOR JUMBO BAG (INDUSTRIAL AND AGRICULTURAL USE)

THREE-LAYER CO-EXTRUSION FOR JUMBO BAG (INDUSTRIAL AND AGRICULTURAL USE)

Specification to be customised.
THREE-LAYER CO-EXTRUSION FOR JUMBO BAG (INDUSTRIAL AND AGRICULTURAL USE) 　 BACK
  • Specification
  • Video
  • Photograph
  • Device
MODEL   KS-CFLL100+120T KS-CFLL100+135T
FEATURE MATERIAL TO BE USED   LDPE LLPDPE HDPE EVA PP NYLON (CUSTOMRISED, PLEASE ADVISE MATERIAL)
MAX. FILM WIDTH   5000 mm   6000 mm
THICKNESS OF FILM   0.02~0.25 m/m
MAX. EXTRUSION OUTPUT   1000 kg/hr   1100 kg/hr
EXTRUDER SCREW DIA.   100 mm × 2
120 mm × 1 		  100 mm × 2
135 mm × 1
SCREW L/D   30 : 1   30 : 1
SCREW / CYLINDER MATERIAL   SACM 645 STEEL WITH HARD WITH NITROGEN TREATMENT, HARDNESS 75 OR OVER
CYLINDER COOLING   ½ HP × 14   ½ HP × 16
DRIVING MOTOR   150 HP × 2
200 HP × 1 		  150 HP × 2
250 HP × 1
HEATER CAPACITY   250 kw   300 kw
DIES (mm)   1200 ø   1350 ø
TEMPERATURE CONTROL   27 ZONES   30 ZONES
COOLING EQUIP   20 HP   25 HP
TAKE-UP UNIT TYPE   FIXED TYPE / OSCILLATING TYPE
PINCH ROLLER (mm)   270 ø × 3000L   270 ø × 3500L
TAKE-UP MOTOR   5 HP   7½ HP
TAKE-UP SPEED (m/min)   6 ~ 60   6 ~ 60
SUB-PINCH ROLLER (mm)   165 ø × 3000L   165 ø × 3500L
GUIDE MOTOR   75 kg/cm   75 kg/cm
WINDING UNIT FWC TYPE   ONE STATION SURFACE WINDER WITH AUTOMATIC BOBBIN CHANGE
EFFECTIVE WIDTH   2800 mm   3300 mm
DIA. OF FILM WOUND-UP ROLL   800 mm   800 mm
WINDER MOTOR   5 HP   7½ HP
DIMENSION (L×W×H) (M)   14×12×16   16×14×20
OPTIONAL DEVICE
Gravimetric Dosing Unit Oscillating Take Up Unit
IBC (Internal Bubble Cooing Computer Control System) Line Speed Synchronized with Computer Control
Thickness Measurement Two Stations Surface Winder
Thickness Controller Chiller
Automatic Hopper Loader Heat Slitting Device
Film Surface Treater EPC (Edge Position Control)
Pressure Gauge Electronic Tension Control
Rotary Die Crane for Die and Air Shaft
Automatic Gauge Control with
Automatic Cooling Ring 		PIB Pump System (For LDPE/LLDPE)
*Specifications are subject to change without notice for improvement.
  5-7 muti-layer co-extrusion will be customerised according to the material to be used. The film specification that going to produce, and application of the film.
MODEL:
KS-CFLL100+120T
KS-CFLL100+135T 2010K-Show

KS-CFLL100+120T

KS-CFLL100+135T

KS-CFLL100+130T
