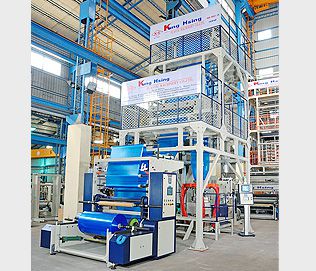

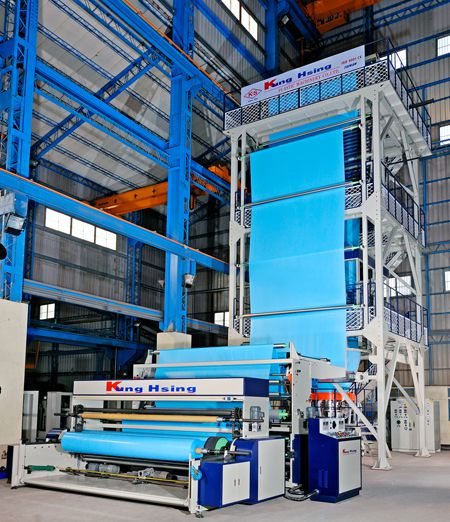

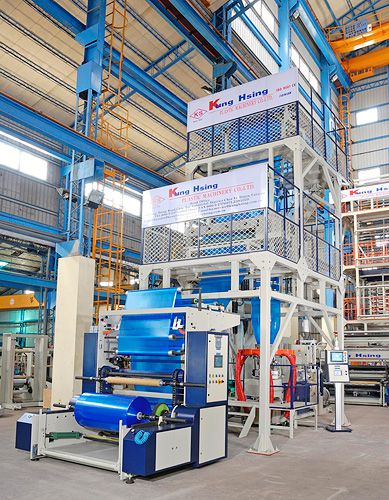

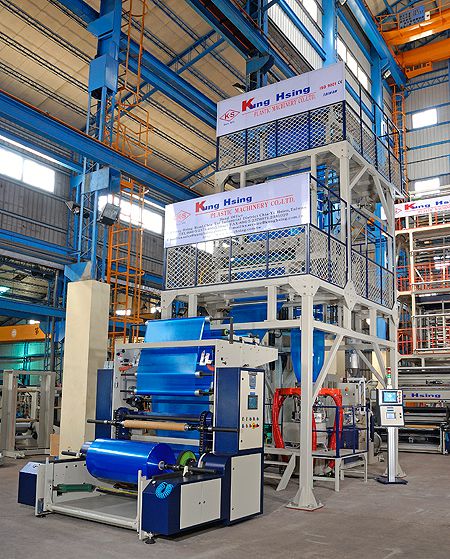

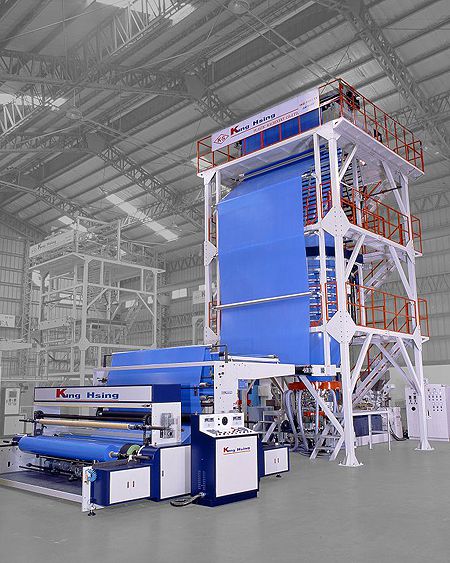

LD/LLDPE SUPER HIGH SPEED BLOWN FILM LINE SINGLE HEAD TYPE

LD/LLDPE SUPER HIGH SPEED BLOWN FILM LINE SINGLE HEAD TYPE

LD/LLDPE SUPER HIGH SPEED BLOWN FILM LINE SINGLE HEAD TYPE 　 BACK
  • Specification
  • Video
  • Photograph
  • Device
MODEL KS-FLL55 KS-FLL65 KS-FLL75 KS-FLL85 KS-FLL100 KS-FLL120 KS-FLL150
FEATURE MATERIAL TO BE USED LOW DENSITY ROLYETHYLENE RESIN
MAX. FILM WIDTH 1100 mm   1500 mm   1700 mm   2200 mm   2700 mm   3200 mm   4000 mm
THICKNESS OF FILM 0.01~0.25 m/m
MAX. EXTRUSION OUTPUT 135 kg/hr   180 kg/hr   250 kg/hr   320 kg/hr   400 kg/hr   480 kg/hr   850 kg/hr
EXTRUDER SCREW DIA. 55 mm   65 mm   75 mm   85 mm   100 mm   120 mm   150 mm
SCREW L/D 30:1   30:1   30:1   30:1   30:1    30:1   30:1
SCREW MATERIAL SACM-645 STEEL WITH HARD WITH NITROGEN TREATMENT
BARREL MATERIAL SACM-645 STEEL WITH HARD WITH NITROGEN TREATMENT
BARREL COOLING 1/2 HP x 3   1/2 HP x 3   1/2 HP x 4   1/2 HP x 4   1/2 HP x 4   1/2 HP x 6   1/2 HP x 7
DRIVING MOTOR + INVERTER CONTROLLER 50 HP   75 HP   100 HP   150 HP   175 HP   200 HP   300 HP
DIE HEATER CAPACITY 23 KW   32 KW   42 KW   55 KW   70 KW   80 KW   100 KW
DIE (mm) ø275   ø350   ø450   ø550   ø650   ø800   ø950
CONTROL PANEL HEATER CAPACITY INDEPENDENCE TYPE SWITCH BOARD (BOX)
DIE (mm) 7 POINTS   7 POINTS   8 POINTS   8 POINTS   9 POINTS   11 POINTS   12 POINTS
COOLING EQUIP TYPE   AIR COOLING SYSTEM
AIR BLOWER + INVERTER CONTROLLER 5 HP   7 1/2 HP   10 HP   10 HP   15 HP   15 HP   20 HP
TAKE-UP UNIT TYPE FIXED TYPE
PINCH ROLLNG (mm) 165 x 1200L   165 x 1600L   165 x 1800L   215 x 2300L   270 x 2800L   270 x 3300L   300 x 4200L
TAKE-UP MOTOR + INVERTER CONTROLLER 1 HP   2 HP   3 HP   3 HP   5 HP   5 HP   7 1/2 HP
TAKE-UP SPEED (m/min) 5~50   5~50   5~50   5~50   5~50   5~50   5~50
COLLAPSING FRAME & BUBBLE CAGE 1 UNIT   1 UNIT   1 UNIT   1 UNIT   1 UNIT   1 UNIT   1 UNIT
SUB-PINCH ROLLER (mm) 100 x 1200L   140 x 1600L   140 x 1800L   140 x 2300L   165 x 2800L   165 x 3300L   165 x 4200L
GUIDE MOTOR 20 kg/cm   30 kg/cm   50 kg/cm   50 kg/cm   50 kg/cm   50 kg/cm   75 kg/cm
WINDING UNIT TYPE ONE STATION TYPE SURFACE WINDER
EFFECTIVE WIDTH 1100 mm   1500 mm   1700 mm   2200 mm   2700 mm   3200 mm   4000 mm
DIA. OF FILM WOUND-UP ROLL 800 mm   800 mm   800 mm   800 mm   800 mm   800 mm   800 mm
WINDING MOTOR + INVERTER CONTROLLER 1 HP   2 HP   3 HP   3 HP   5 HP   5 HP   7 1/2 HP
SHIPPIING DATA(APPROX) DIMENSION (LxWxH)(M) 6.5 x 2.6 x 5   7.5 x 3.1 x 7   8.0 x 3.6 x 8   8.5 x 4.2 x 9   9.5 x 4.5 x 10   11 x 5 x 12   12 x 5.5 x 16
OPTIONAL DEVICE Automatic Hopper Loader、Film Surface Treater(Corona)、Pressure Gauge、Two-Stations Surface Winder、Air Chiller、Rotary Die、 Oscillating Take-Up Unit、E.P.C Device、Electronic Tension Control、Hydraulic Unloading Device、Heat Slitting Device、 Gravimetric Dosing Unit、Thickness Measurement、Width Measurement、Automatic width Controller、C.P.C. Device、 Internal BubbleCooing Computer Control System(IBC)

*Specifications are subject to change without notice for improvement.
MODEL:
KS-FLL55A
KS-FLL65A
KS-FLL75A
KS-FLL85A
KS-FLL100A Video
KS-FLL120


KS-FLL65A

KS-FLL85A

KS-FLL100A
